Are you looking for an ultra-lightweight, reliable power amplifier that can deliver up to 6000 watts of peak power?

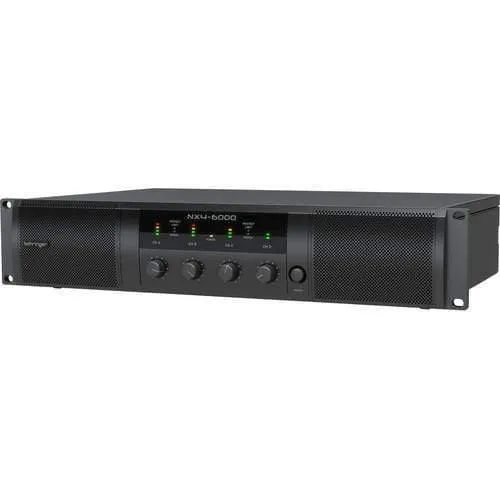

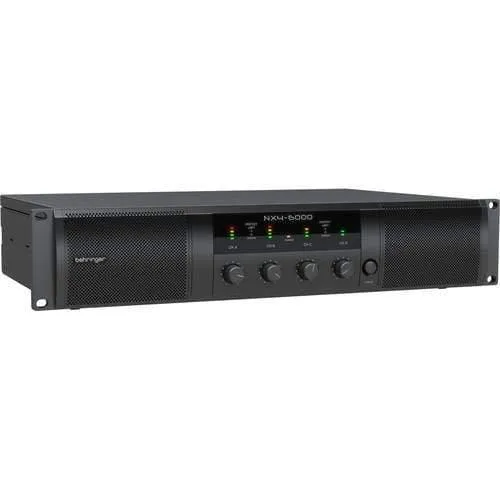

Look no further than the Behringer NX4-6000 Ultra-Lightweight 6000-Watt 4-Channel Class-D Power Amplifier with SmartSense. This 2 RU rack-mountable stereo power amplifier is capable of delivering 440W of peak power per channel at 8 Ohms, or in bridge mode, up to 1600W of peak power into two 8-Ohm speakers. It features SmartSense loudspeaker impedance compensation technology combined with a switch-mode power supply and zero-attack limiters for a linear 20 Hz to 20 kHz frequency response with noise-free audio and fast transient response at maximum output power into any speaker load impedance. Plus, it weighs only 13.4 lb and is equipped with detented and illuminated gain control knobs for easy level setting
FEATURES:
- Delivers a maximum of 4 x 1600W at 2 Ohms, 4 x 860W at 4 Ohms, or 4 x 440W at 8 Ohms in stereo mode
- Delivers a maximum of 2 x 3000W at 4 Ohms or 1600W at 8 Ohms in bridge mode
- Weighs only 13.4 lb
- Cool-running, high-density Class-D technology with a near-zero thermal buildup
- Efficient switch-mode power supply for noise-free audio, fast transient response, and low power consumption
- SmartSense loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
- Zero-attack limiters offer maximum output level with reliable overload protection
- Built-in stereo crossover with low-cut, high-cut, and full-range mode
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4" TRS combination input connectors for compatibility with balanced and unbalanced audio sources
- Twist-lock speaker connectors for reliable connection
- Independent DC, LF, and thermal overload protection on each channel automatically protects amplifier and speakers without interruption
- Back-to-front ventilation system prevents thermal buildup for reliable operation
- Designed and engineered in Germany
SPECIFICATIONS:
| Number of Channels | 4 |
| Power Class | Class D |
| Watts/Side @ 8 ohms | 440W |
| Watts/Side @ 4 ohms | 860W |
| Watts/Side @ 2 ohms | 1600W |
| Watts Bridged | 2 x 3000W @ 4 ohms |
| Inputs | 4 x XLR-1/4" combo |
| Outputs | 4 x speakON |
| Cooling System | Back to front dual fan ventilation |
| DSP | No |
HOW IT WORKS:
The Behringer NX4-6000 Ultra-Lightweight 6000-Watt 4-Channel Class-D Power Amplifier with SmartSense is easy to operate. Simply plug your balanced or unbalanced line-level source into the four XLR-1/4" combination input connectors, connect your speakers using the twist-lock connectors, and use the detented and illuminated gain control knobs to adjust the level. The amplifier will automatically detect the speaker impedance and adjust the power output accordingly.PRODUCT FAQ:
Q: What is the maximum power output of the Behringer NX4-6000?
A: The Behringer NX4-6000 can deliver a maximum of 4 x 1600W at 2 Ohms, 4 x 860W at 4 Ohms, or 4 x 440W at 8 Ohms in stereo mode, and a maximum of 2 x 3000W at 4 Ohms or 1600W at 8 Ohms in bridge mode.
Q: Does the Behringer NX4-6000 have any protection features?
A: Yes, the Behringer NX4-6000 features an independent DC, LF, and thermal overload protection on each channel, as well as a variable-speed fan and ventilation openings with back-to-front airflow to prevent overheating.
