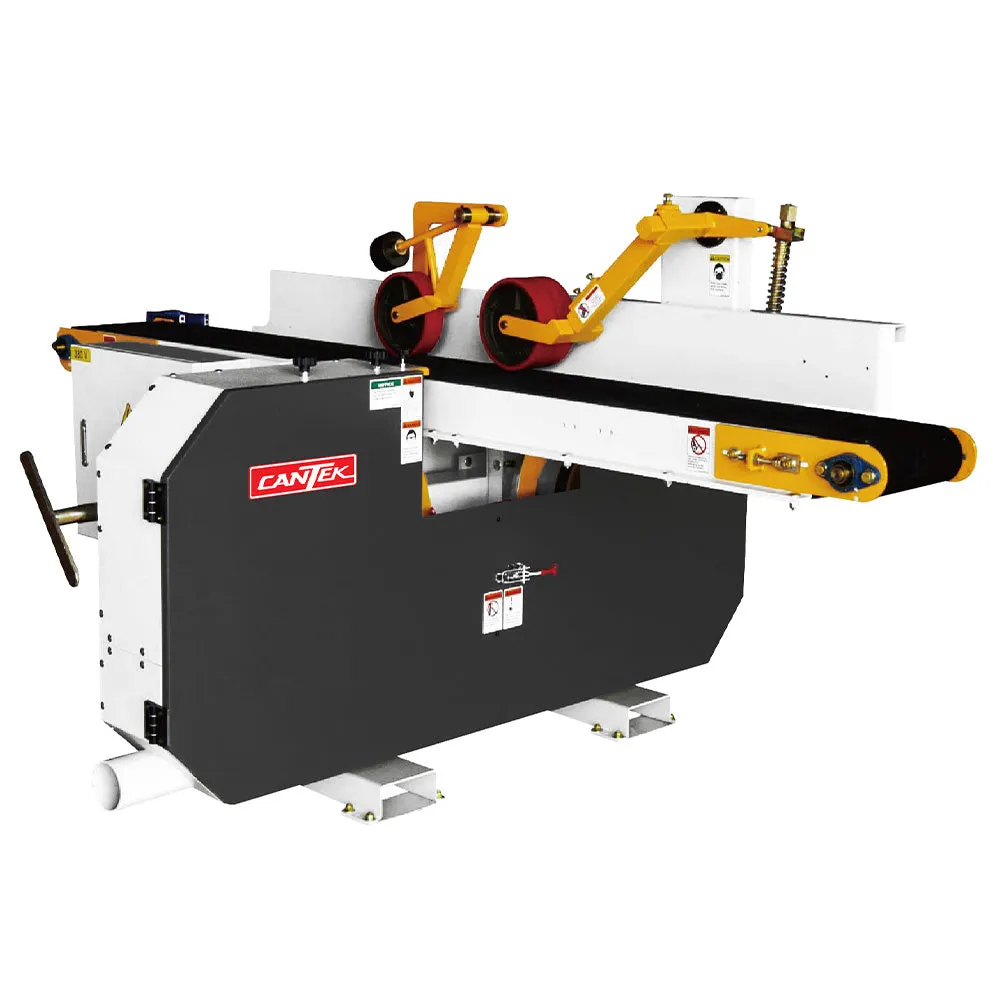

The powerful yet economically priced Cantek HR12E horizontal resaw can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly. It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email [email protected]
Note: Cannot ship to Pennsylvania or California.
[TABS]
Features
- Powerful 20HP saw motor capable of cutting through virtually any wood species with ease

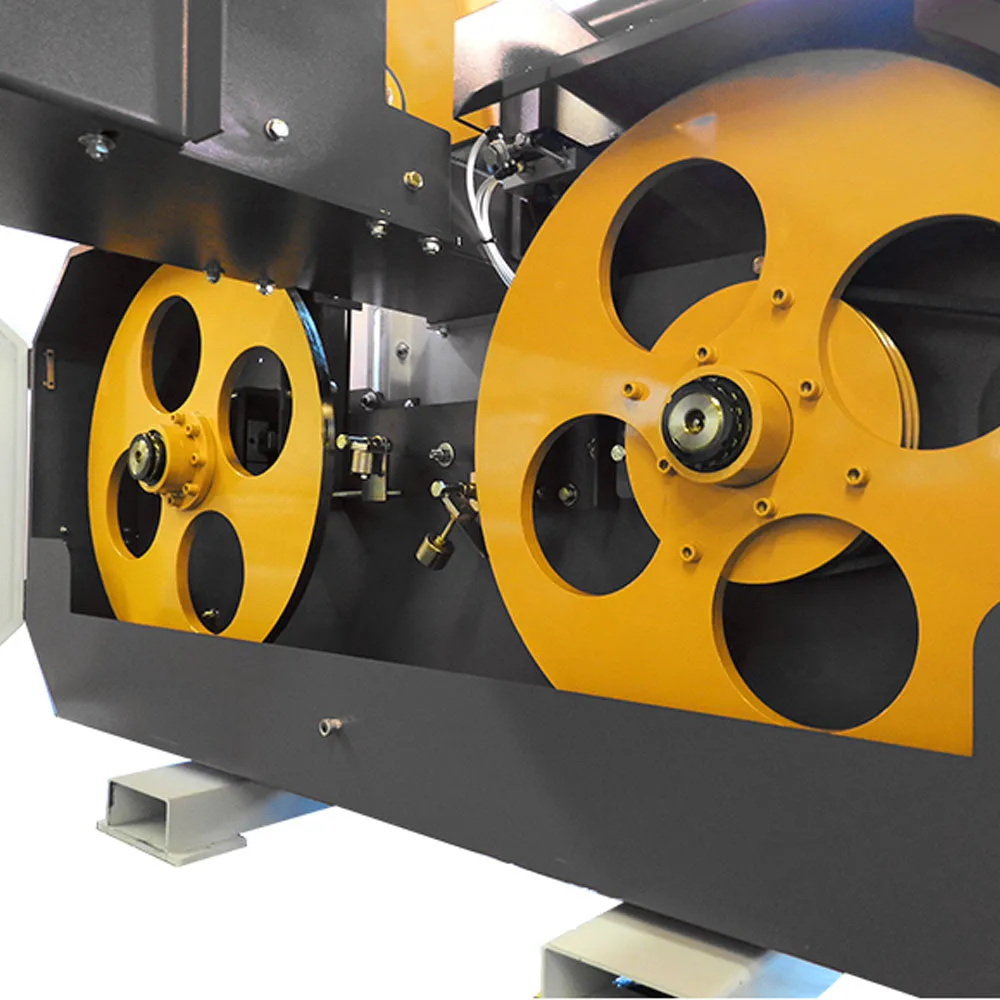

- Solid steel 28” diameter saw wheels capable of running a 1” wide, thin kerf blade for maximum cut accuracy and material yield
- Variable feed speed by inverter to ensure optimum cut accuracy and blade life
- Simple operation and low price point allowing for the maximum return on your investment

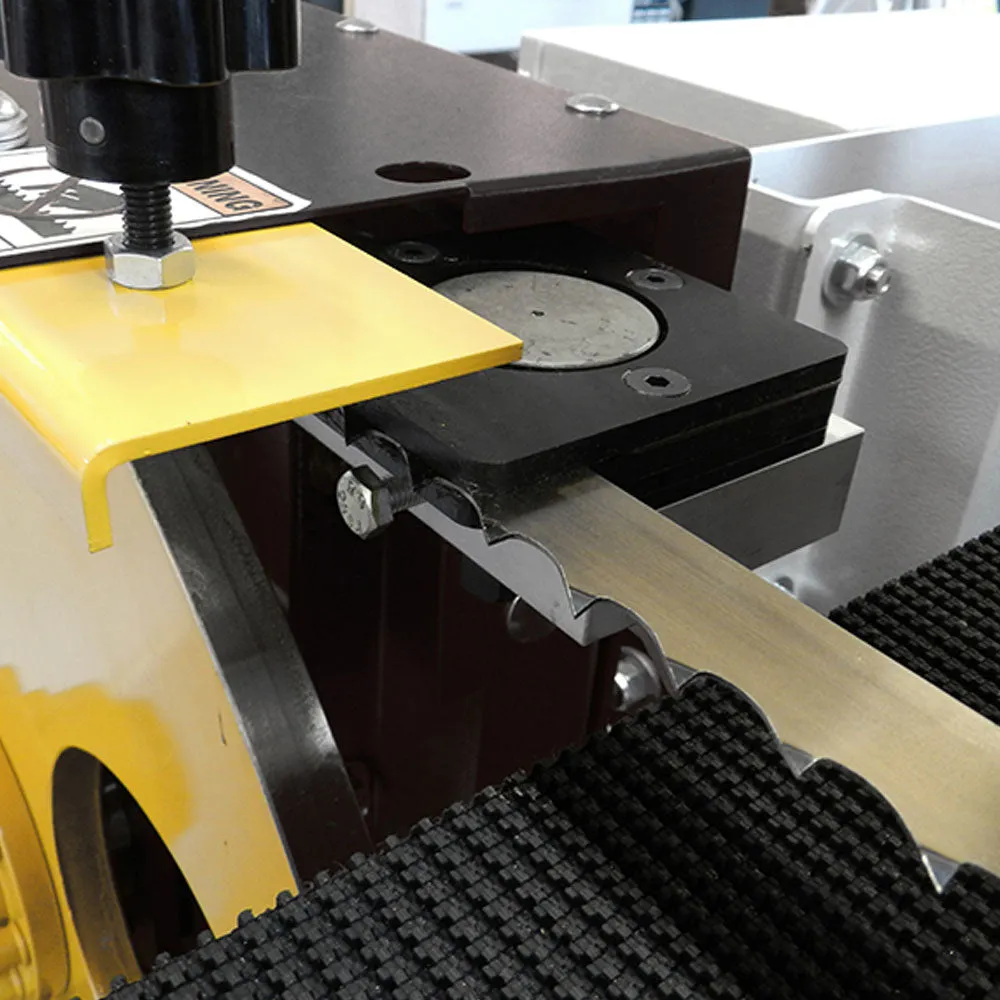

- Adjustable sandwich style guide system ensures the blades run true and cut straight

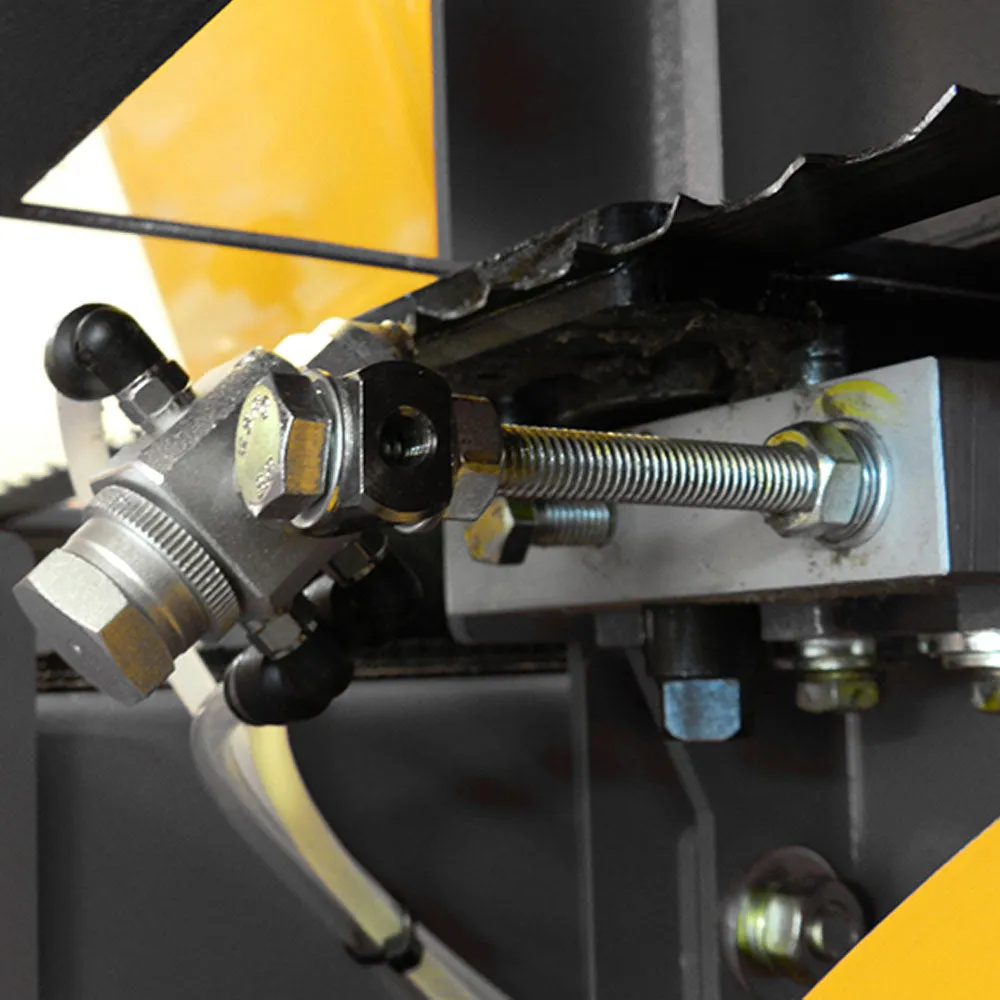

- Blade lubrication system ensure the blade runs cool for an optimum blade life
- Single head horizontal configuration with
- Variable feed speed by inverter from 16 – 82 FPM
- Heavy duty solid steel saw wheels are precision ground and dynamically balanced

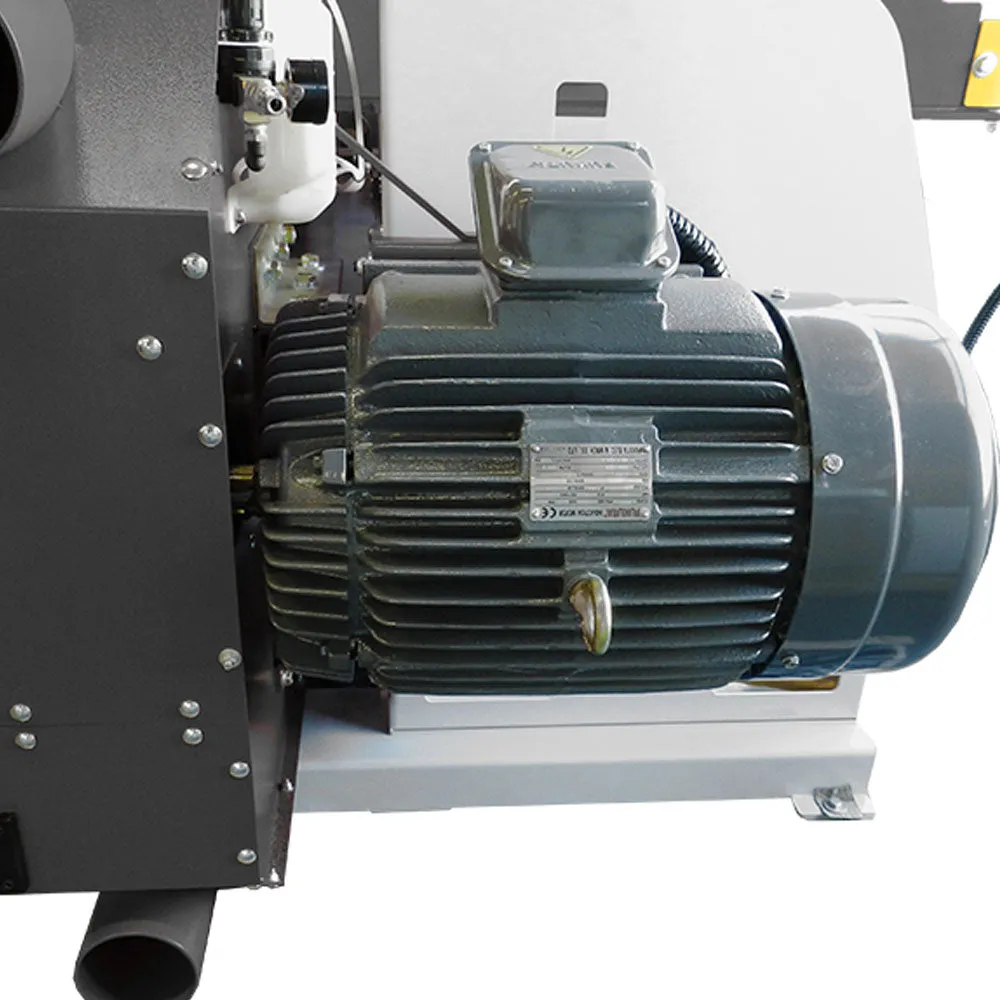

- Powerful 20HP saw wheel motor
- Manual saw wheel elevation
- Both saw blade housing elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment
- Adjustable sandwich style guide system

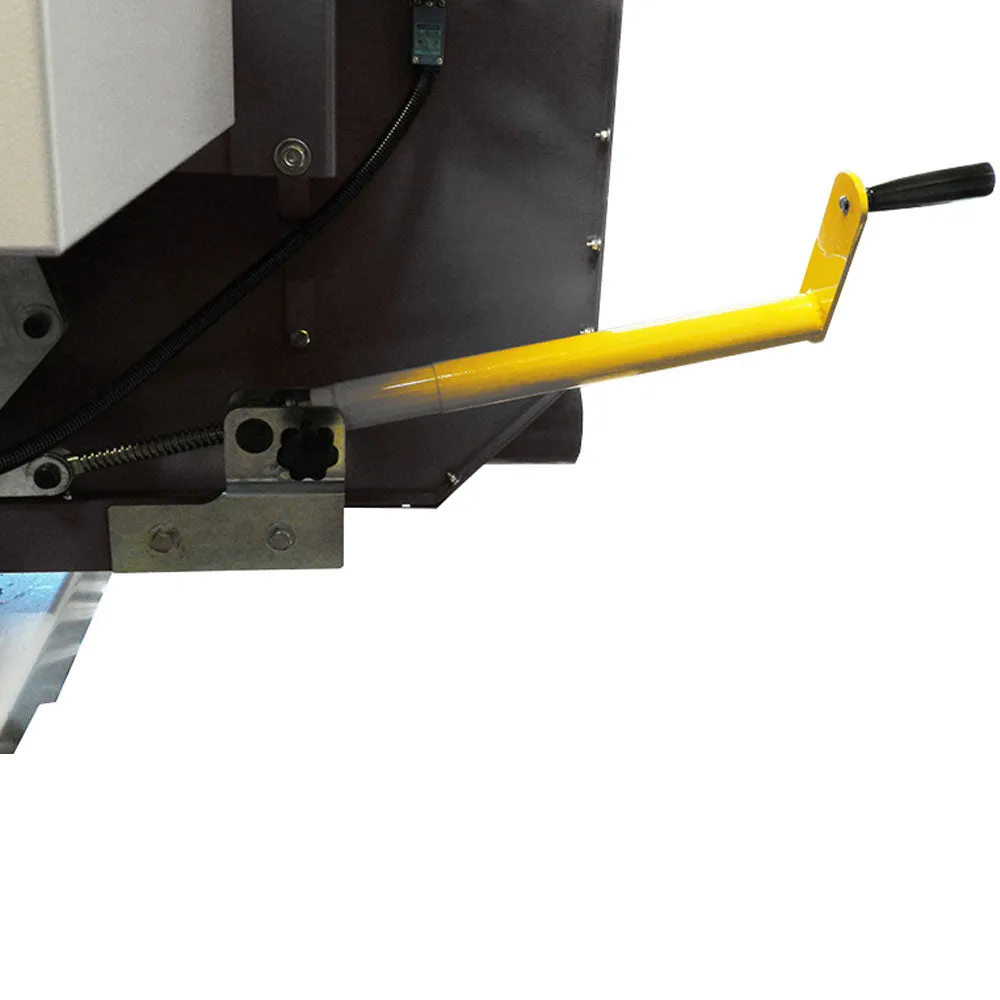

- Manual saw blade tension adjustment by handle

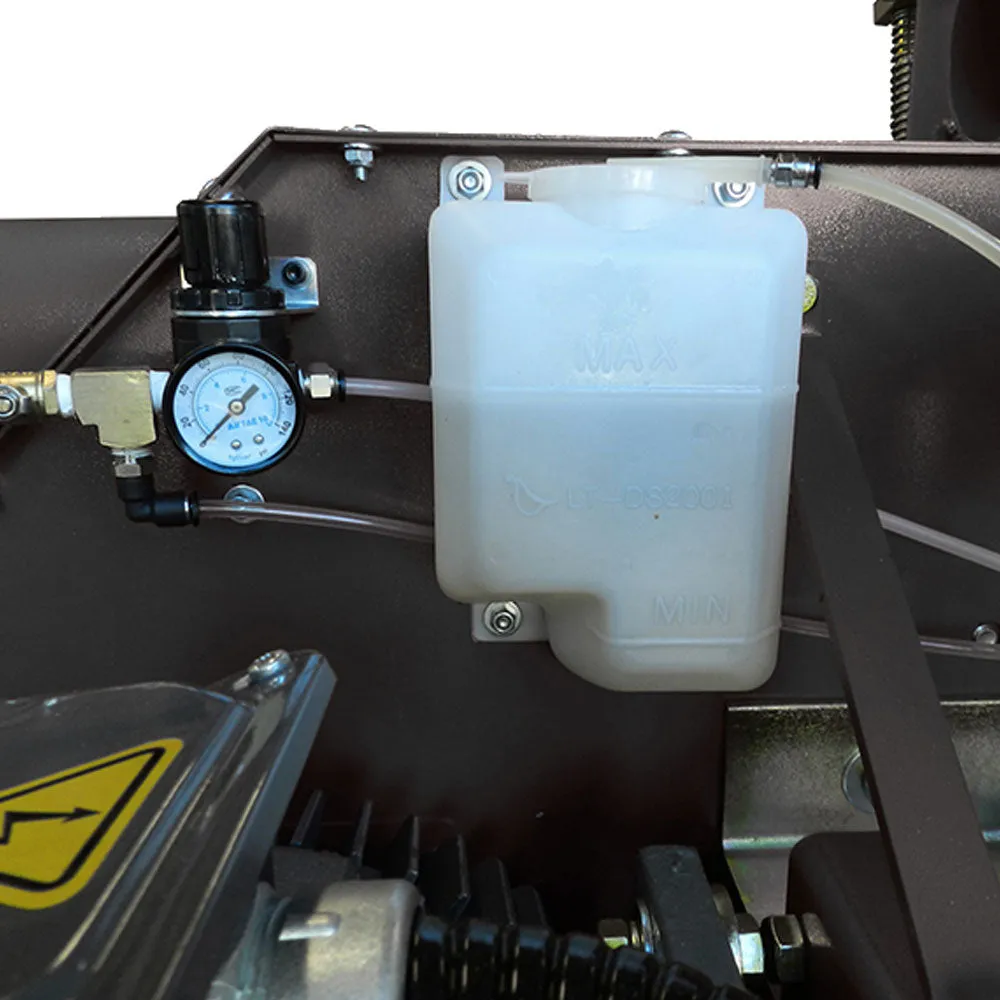

- Auto blade lubrication system

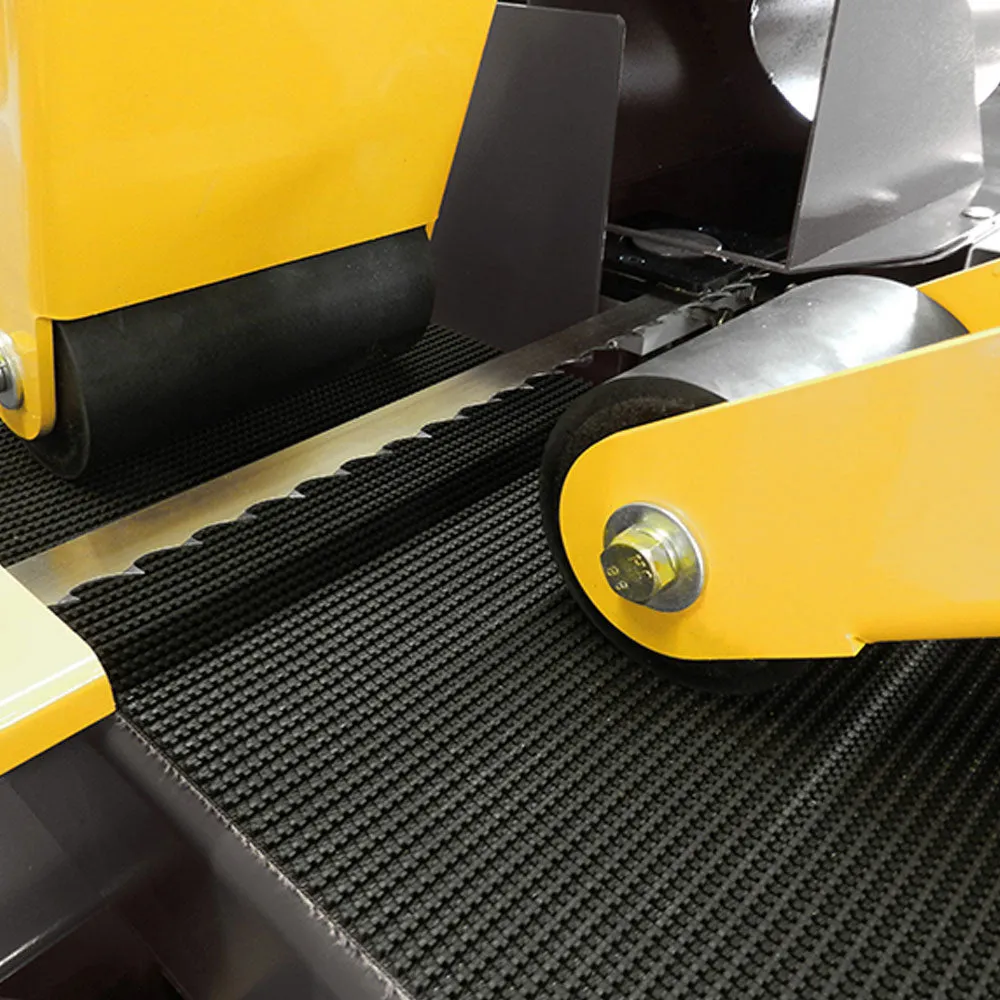

- (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
- Standard electrics are 230/3/60 to UL/CSA Standards (Other voltages available on request)
Specs
Max. Input board size (W x T): 11.8” x 9.8” (300 x 250 mm)
Distance from blade to conveyor table: 0.15” – 4.92” (4 – 125mm) (4 – 125 mm)
Conveyor belt size: 11.2” x 215.3” (285 x 5,470 mm)
Diameter of saw wheel: 28” (dia.) x 1” (W) (711mm (dia.) x 24.5mm (W))
Variable feed speed: 16 – 82 FPM (5 – 25 m/min)
Saw blade dimensions: 168” (L) x 1” (4,625 x 24.5 mm)
Main motor: 20hp

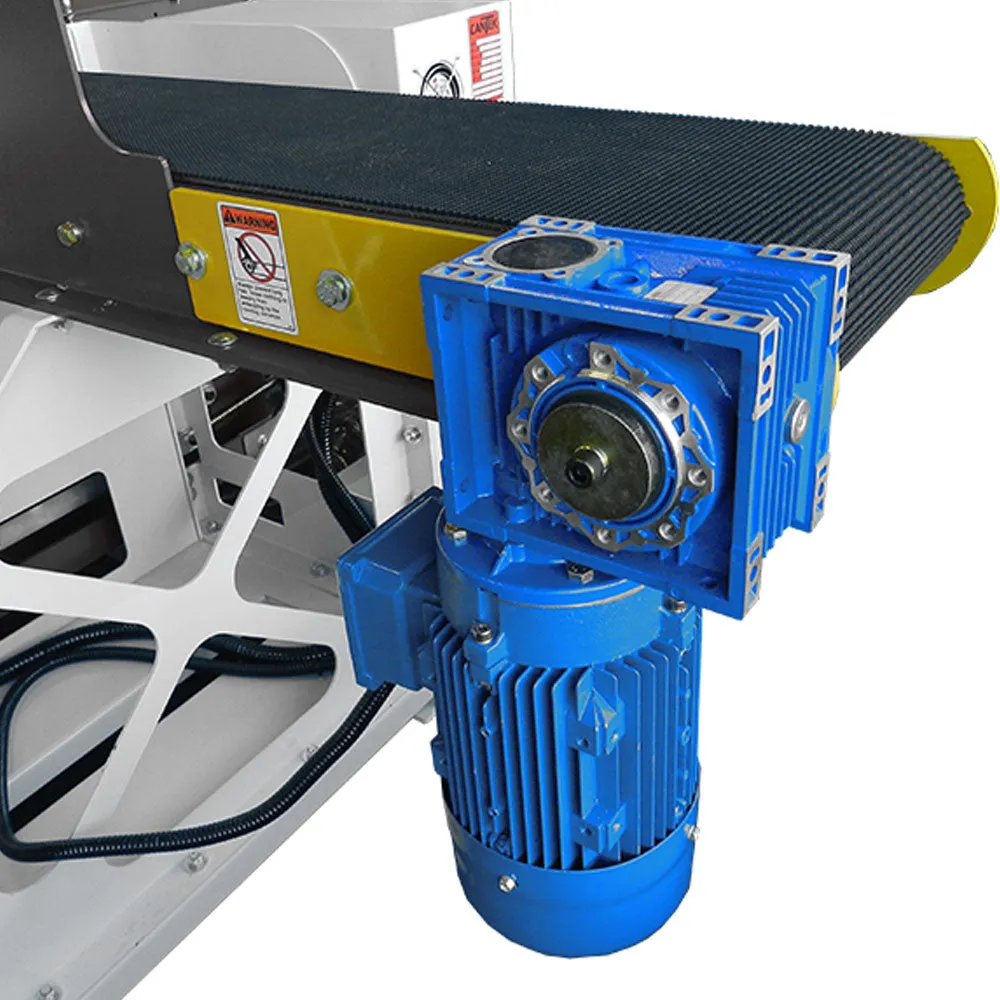

Feed motor: 2hp
Electrics: 230/3/60 = 60.8 Full Load Amps
Dust Hood: 4” x 4 pcs. (100 mm x 4 pcs)
Machine with Conveyor weight: 2,464 lbs.
Machine shipping dimensions: 86” x 45” x 45”
Machine shipping weight: 1,980 lbs.
Conveyor shipping dimensions: 113” x 22” x 28”
Conveyor shipping weight: 550 lbs.
