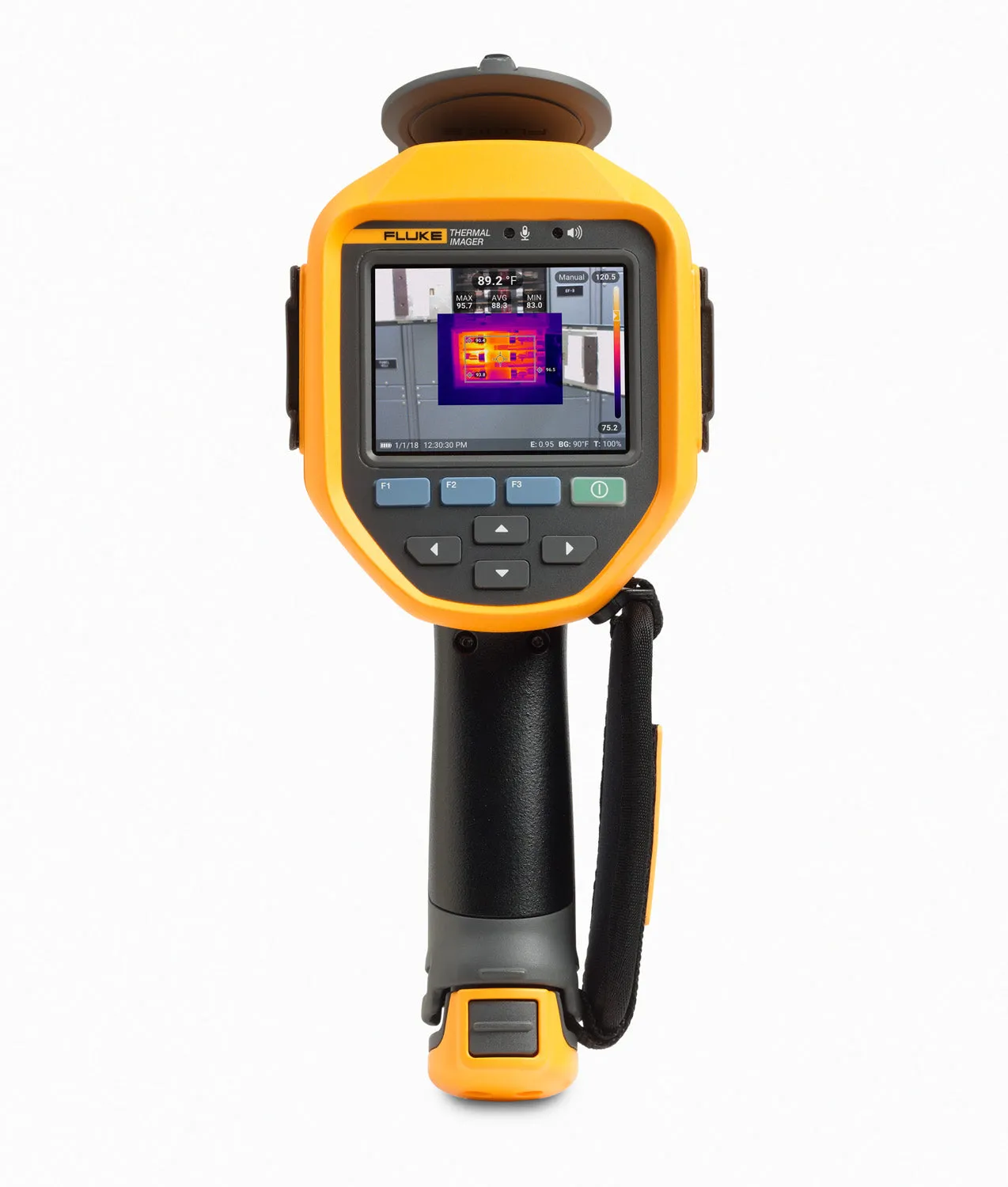

Name: Fluke Ti480 PRO Infrared Camera
SKU: 618874

It’s a dilemma. Preventive and predictive maintenance rounds must be done, however when conditions are harsh, there is no margin for error. Accurate measurements need to be captured the first time. Don’t go out unprepared. The Fluke Ti480 PRO is designed to work in the toughest industries.

Oil and gas production
Electrical, water and gas utilities
Metallurgy
Glass manufacturing

Advanced thermal capability. Rugged and easy to hold.

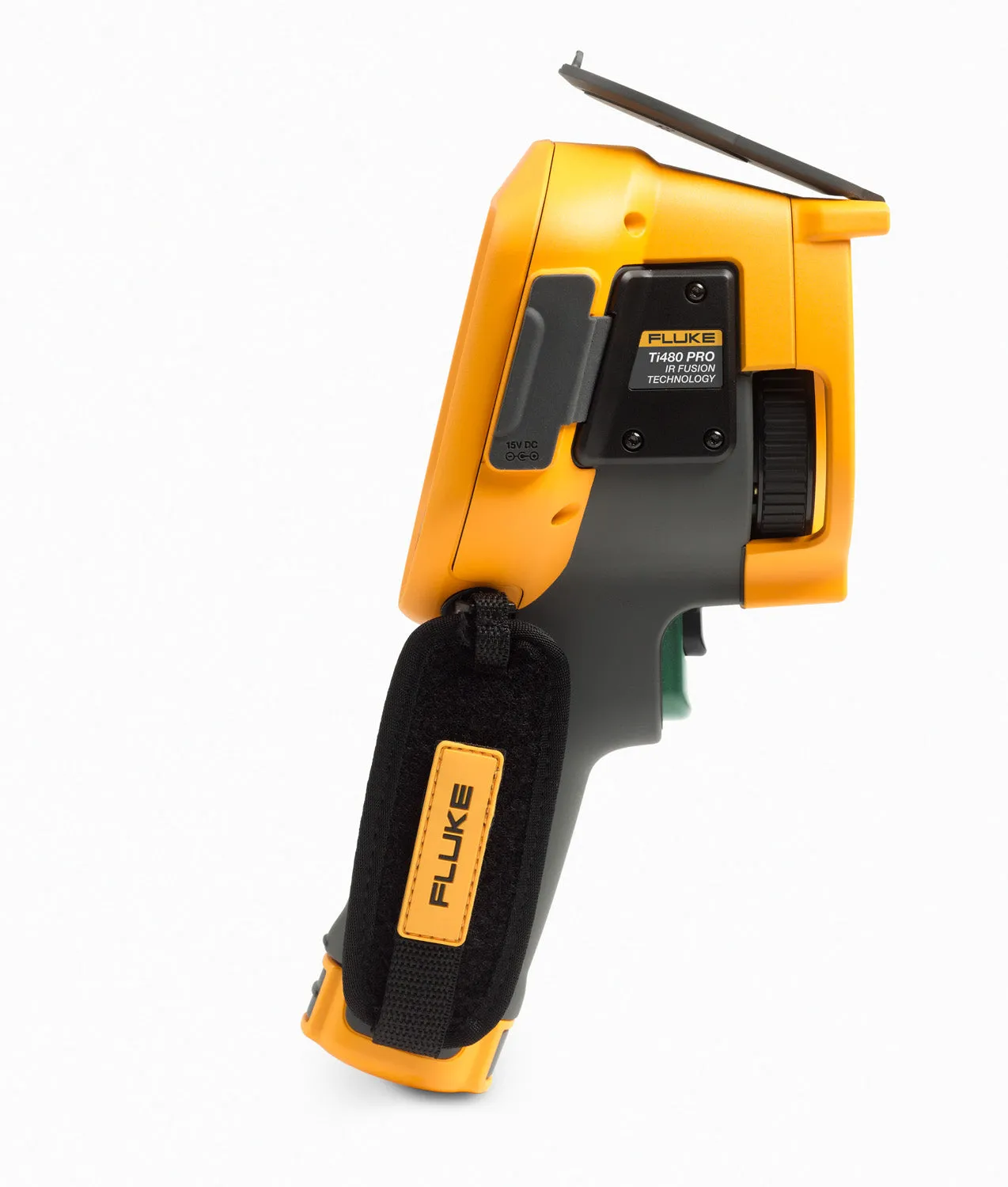

The rugged, pistol grip design of this camera allows the thermographer to focus on their surroundings rather than the camera. Clip it to your pack and climb a ladder – the camera can take it. Even after that type of a climb you can capture a surprising level of detail with the high thermal sensitivity, allowing you to isolate the smallest temperature anomalies. Display these temperature differences in SuperResolution mode – get 4x the standard resolution and analyze your thermal images in more detail than ever before. Never miss a temperature anomaly again, capture in-focus images throughout the field of view with MultiSharp. While you may not need all these features on a daily basis, they are essential when diagnosing mission critical equipment. When you need to get the right image the first time, reach for the Fluke Ti480 PRO.

Get the most out of your Ti480 PRO with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.

Edit and optimize images
Combine infrared and visible images for simpler analysis
Create detailed reports
Organize and search images by asset, severity, and title
Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.

Includes:

Thermal imager with standard infrared lens
AC power supply and battery pack charger (including universal AC adapters)
Two, rugged lithium ion smart battery packs
USB cable
HDMI video cable
4 GB micro SD card
Rugged, hard carrying case
Adjustable hand strap
Available by free download Fluke Connect® SmartView® desktop software and users manual

Features

Increased sensitivity to visualize temperature differences
Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
More intuitive visual interface, improved, user-tested, touch screen interface
More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility

Specifications

Key features
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Detector resolution	640 x 480 (307,200 pixels)
SuperResolution	Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
MultiSharp™ Focus	Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Touchscreen display (capacitive)	3.5 inch landscape 640 x 480 LCD
Rugged, ergonomic design for one handed use	Yes
Digital zoom	2x and 4x

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	-20 °C to 1000 °C (-4 °F to 1832 °F)
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)^*	≤ 0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes

^*Best possible

Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)

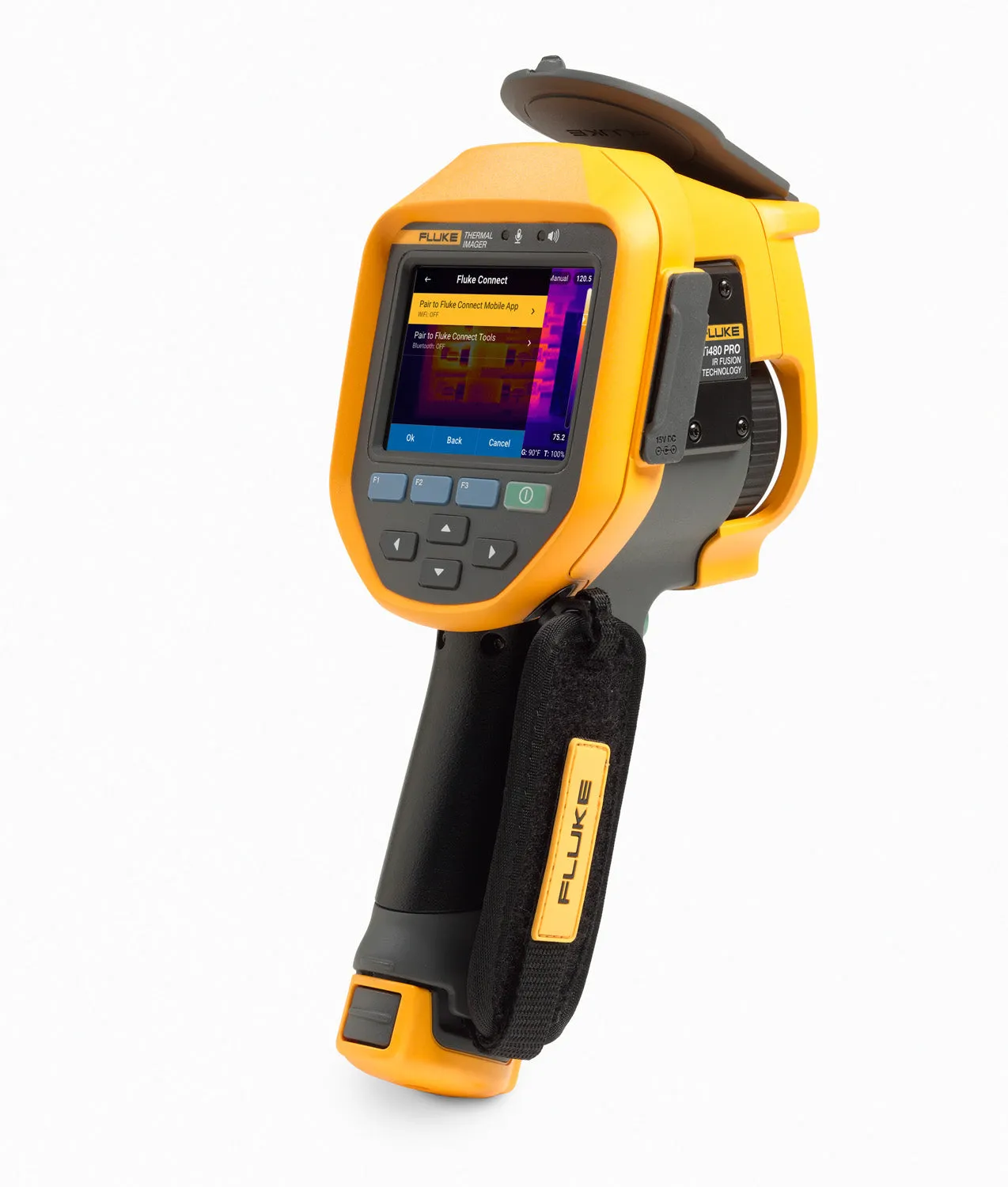

Fluke Connect® app compatible	Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional software	Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect Instant Upload	Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect tool compatible	Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported.

IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode	Continuously variable
Picture-In-Picture (PIP)	Yes
Built-in digital camera (visible light)	5 MP

Lenses
Standard lens	IFOV (spatial resolution)	0.93 mRad, D:S 1065:1
	Field of view	34 °H x 24 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Picture-in-picture and full screen
Optional 2x telephoto smart lens	IFOV	0.46 mRad. D:S is 1529:1
	Field of view	17 °H x 12 °V
	Minimum focus distance	45 cm (approx. 18 in)
	IR-Fusion® technology	Picture-in-picture and full screen
Optional wide-angle smart lens	IFOV	1.85 mRad, D:S is 377:1
	Field of view	48 °H x 34 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Full screen

Level and span
Smooth auto and manual scaling
Touchscreen adjustable level/span	Yes. Span and level can be easily and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
Image file formats	Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
Memory review	Thumbnail and fullscreen review
Software	Fluke Connect SmartView full analysis and reporting software with access to the Fluke Connect system
Export file formats with SmartView® software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset provided
IR-PhotoNotes™	Yes (5 images)
Text annotation	Yes
Video recording	Standard and radiometric
File formats video	Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote display viewing	Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote control operation	Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app
Auto capture (temperature and interval)	Yes

Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	2-3 hours per battery (Actual life varies depending on settings and usage)
Battery charge time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes

Colour palettes
Standard palettes	9: Ironbow, Rainbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	9: Ironbow, Raindow, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	3 user-definable spot markers
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to 50 °C (-4 °F to 122 °F) without batteries
Relative humidity	10% to 95% non-condensing
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock	25 g, IEC 60068-2-29
Drop	Engineered to withstand 2 meter (6.5 feet) drop with standard lens
Size (H x W x L)	27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)/1.54 kg (3.4 lb)
Weight (battery included)	1.04 kg (2.3 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Fluke Connect® SmartView® desktop software is available in all countries but Fluke Connect system is not. Check with your local Fluke distributor.

All trademarks are the property of their respective owners. Smart phone, wireless service and data plan not included with purchase. First 5 GB of storage is free. Compatible with iPhone 4s and up running iOS 8 or higher, iPad (in an iPhone frame on iPad) and Galaxy S4, Nexus 5, HTC One running Android™ 4.4.x or higher. Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc.
