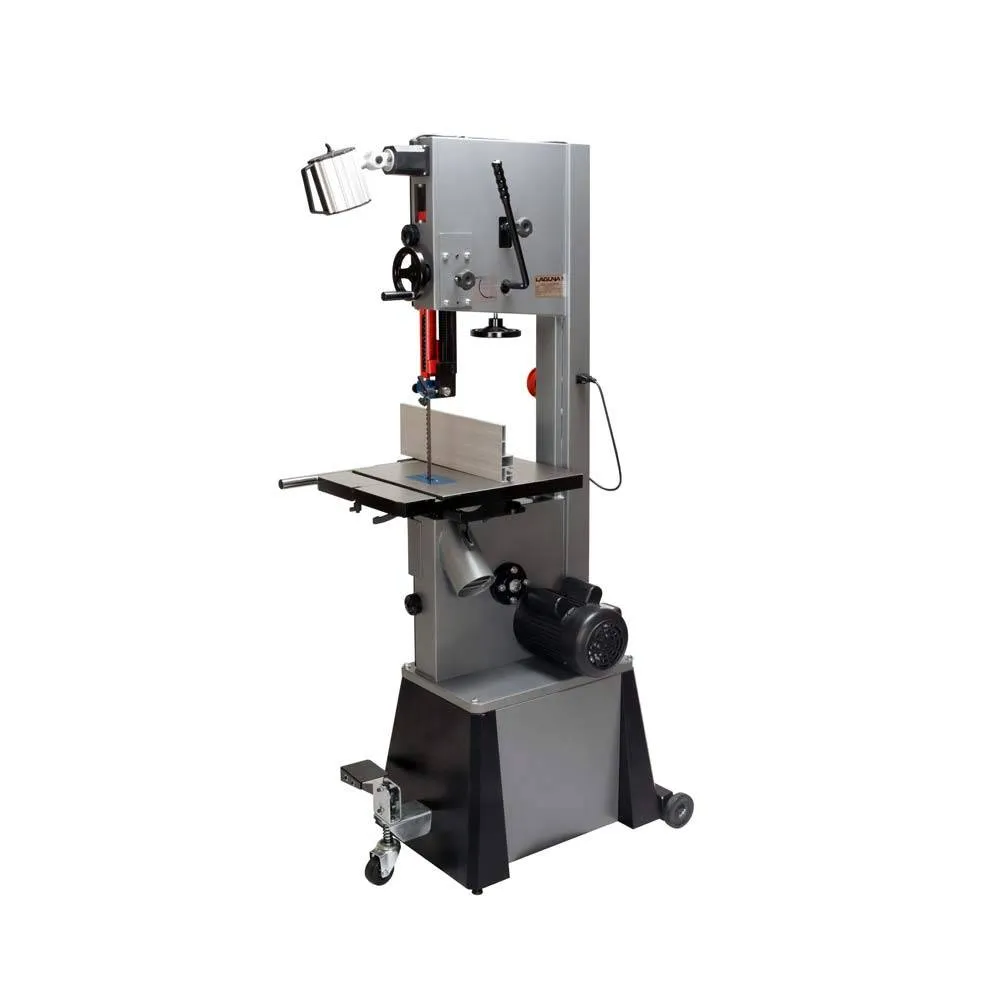

The Laguna 14|12 Bandsaw is a 110 Volt saw that feels like a 220. Features include a pyramid-shaped spine, 1-3/4 HP TEFC Motor, quick release tension, 115-volt outlet, and micro-polished 21 X 16″ table mounted onto oversized Trunion paired with Aluminum Hi/Low Fence.
Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires. Double windows allow you to check both tension & tracking while the machine is running. The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trademark of Laguna, just like the famous ceramic Laguna guides.
Most blade guide systems are designed to support the blade on the sides, and then either above or below the side guides to support the back of the blade. This forces the blade to twist as pressure from the wood being cut is transferred to the back blade guide. Laguna Guides solve this problem by supporting the blade on the sides above and below the back blade guide. By eliminating all blade twist, the Laguna Guide gives the blade unsurpassed stability.
The Laguna Guide System utilizes 10 points of contact, 4 more than traditional guide systems. It features "Space Age" ceramic guide blocks as both side and thrust support. This enables the ceramic piece to gently touch the side of the blade, on all three sides without heat build-up, therefore giving stability, which has never been achieved before.
Add the optional and make your band saw mobile!
Optional Blades:
- : Carbide-tipped resaw blades. The carbide tips outlast standard blades many times over and can be re-sharpened. The profile of the carbide tipped teeth is optimized to provide a thin kerf and smooth finish cuts in woods. A 3/4" blade width is recommended for resawing on the 14|CX Band Saw.
- : Swedish silicon steel blades with heat-treated teeth and rear surface (on wider blades). The Pro-Force Blades out perform standard carbon steel blades. These blades are available in a wide range of widths and TPI. The narrowest blades are used for tight curved work. The medium widths are perfect for gentle curves, light weight straight cuts, and general purpose work. Higher tooth counts provide smoother cuts and are required for thinner stock. Lower tooth counts provide faster cutting, rougher surface, and are better for thicker stock.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.
Note: Some images are shown with optional Wheel Kit & Light System. Blade NOT included. Check out our selection of band saw blades .
[TABS]
Features
- Laguna Ceramic Guides
- 4" Dust Port
- Table Height: 38"
- 110 Volt Outlet
- Tension Window
- Tension Indicator
- Tracking Window
- Cast Iron Wheels
- Quick-Release Tension
- Rack & Pinion Upper Guide
- Premium Anodized Aluminum Throat Plate
- Safety Key
- 12" Resaw
- Stand Included
- Illuminated On/Off Switch
Specs
Table Tilt Right: 45°
Table Tilt Left: 7°
Positive Stop: 90°
Table Size: 21-1/2" x 16"
Heavy Duty Cast Trunion: 8" x 13"
Nema: 5-15P
Hi/Low Aluminum Fence: 18" x 5-1/2" x 1/2"
Dual Voltage Motor: 115/230
Pre-Wired: 115V
Motor: 14/7 Amp TEFC
HP: 1-3/4hp
Blade Length: 115"
Min Blade Width: 1/8"
Max Blade Width: 3/4"
