Laguna's C|Flux dust collectors have been engineered to be user friendly and highly effective.
How the cyclone works:
Fast-moving particles move in a cyclonic swirl to create a stronger CFM while larger and heavier particles slow down when meeting the crossbar and settle in the drum. Finer dust gets carried with the airstream up through the center vane. Only fine dust passes through the fan (unlike the single stage design where all dust passes through the fan). Single piece plenum creates minimum resistance while carrying the airflow into the canister. Particles are filtered by the HEPA or 1 micron canister. This superior cyclonic separation provides extended filter life.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.
[TABS]
Features

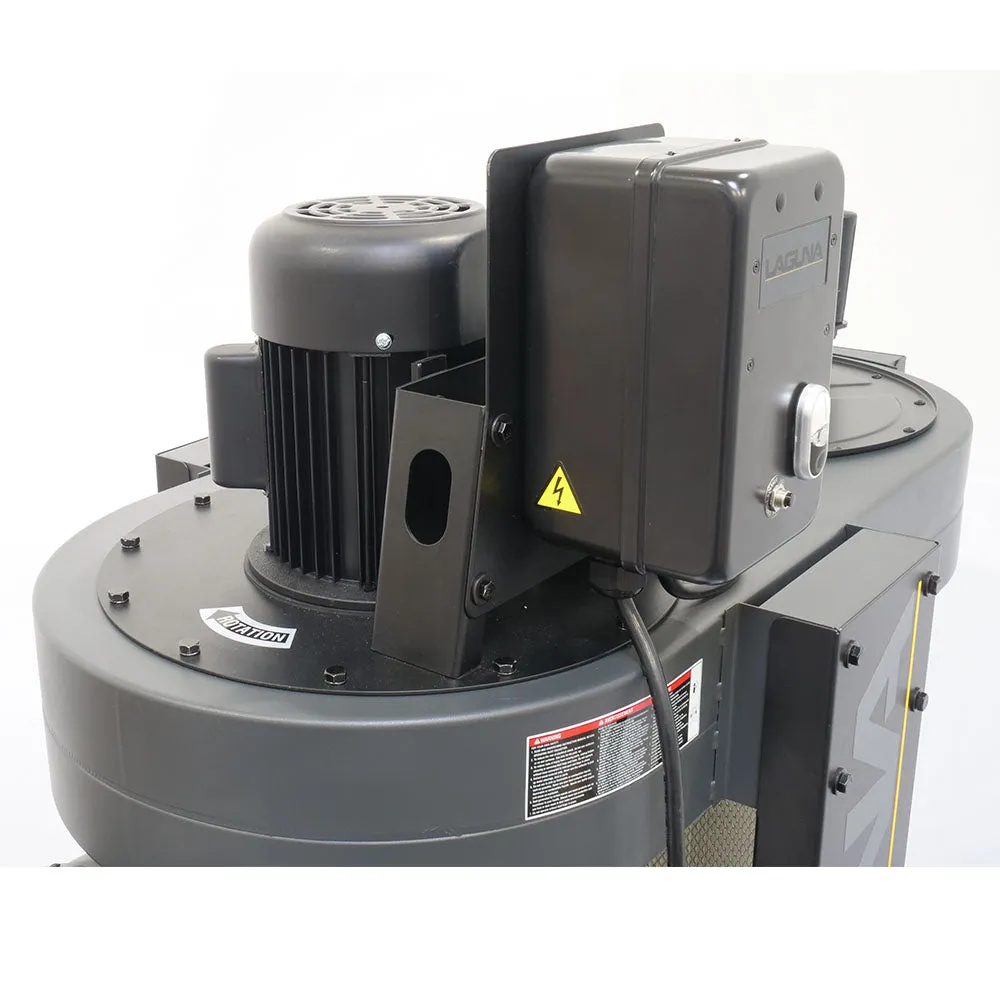

- L-shaped dual mount motor bracket reduces vibration with the oversized vertical bracket

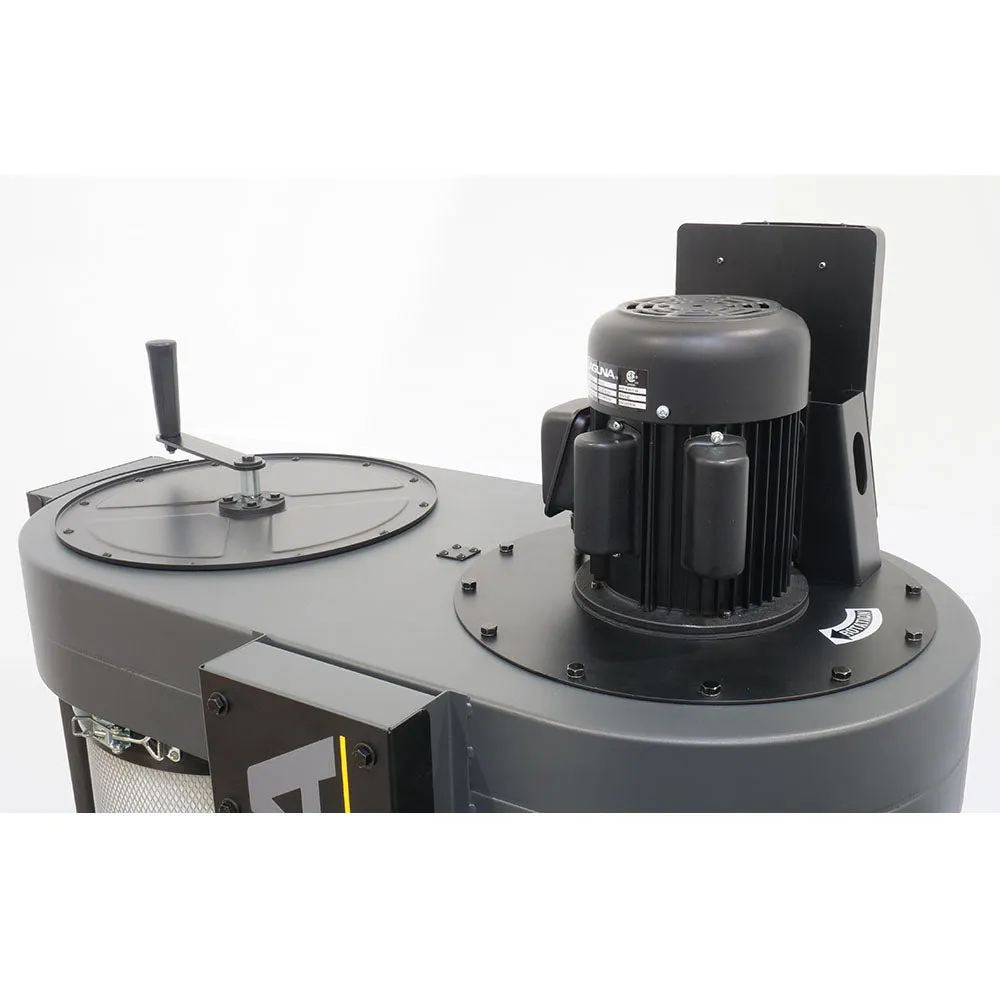

- One piece main plenum allows direct airflow which helps reduce resistance
- Radial Steel Fan is balanced to ISO 1940 standards
- Filter surface area up to 120% larger than competitors

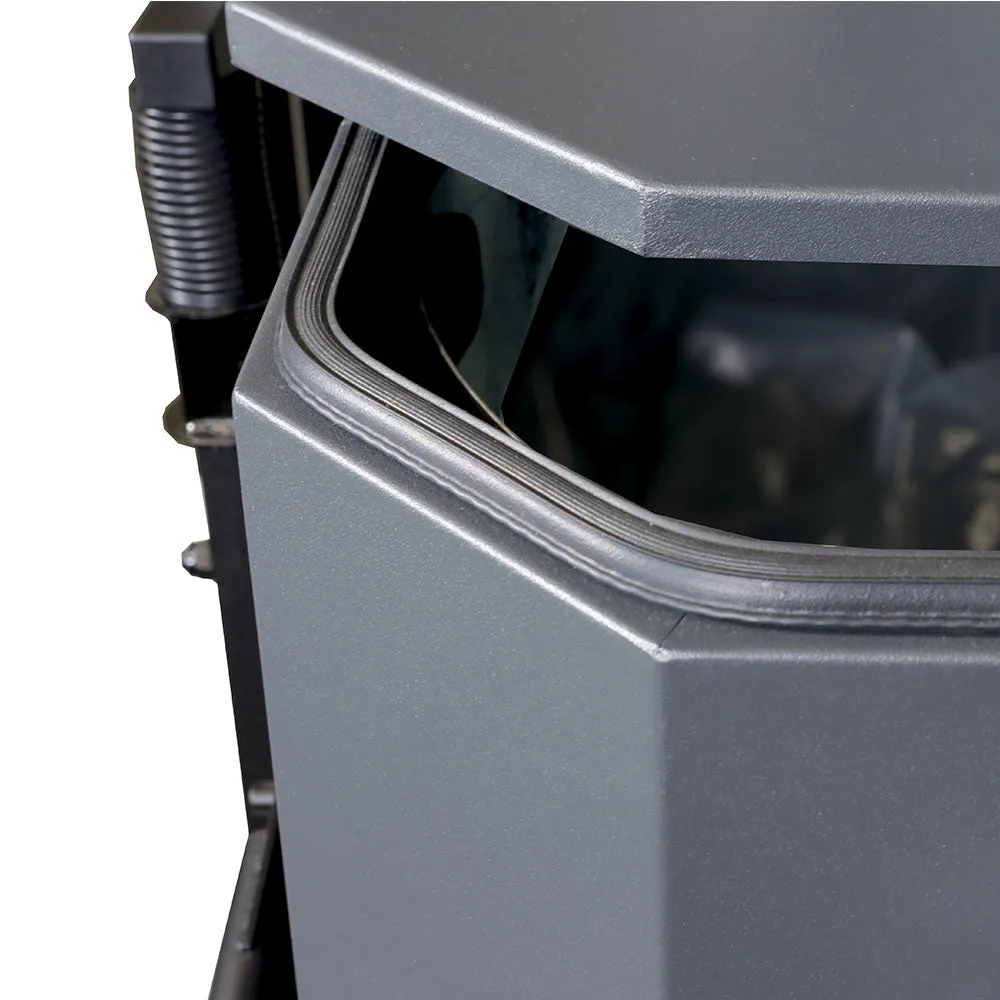

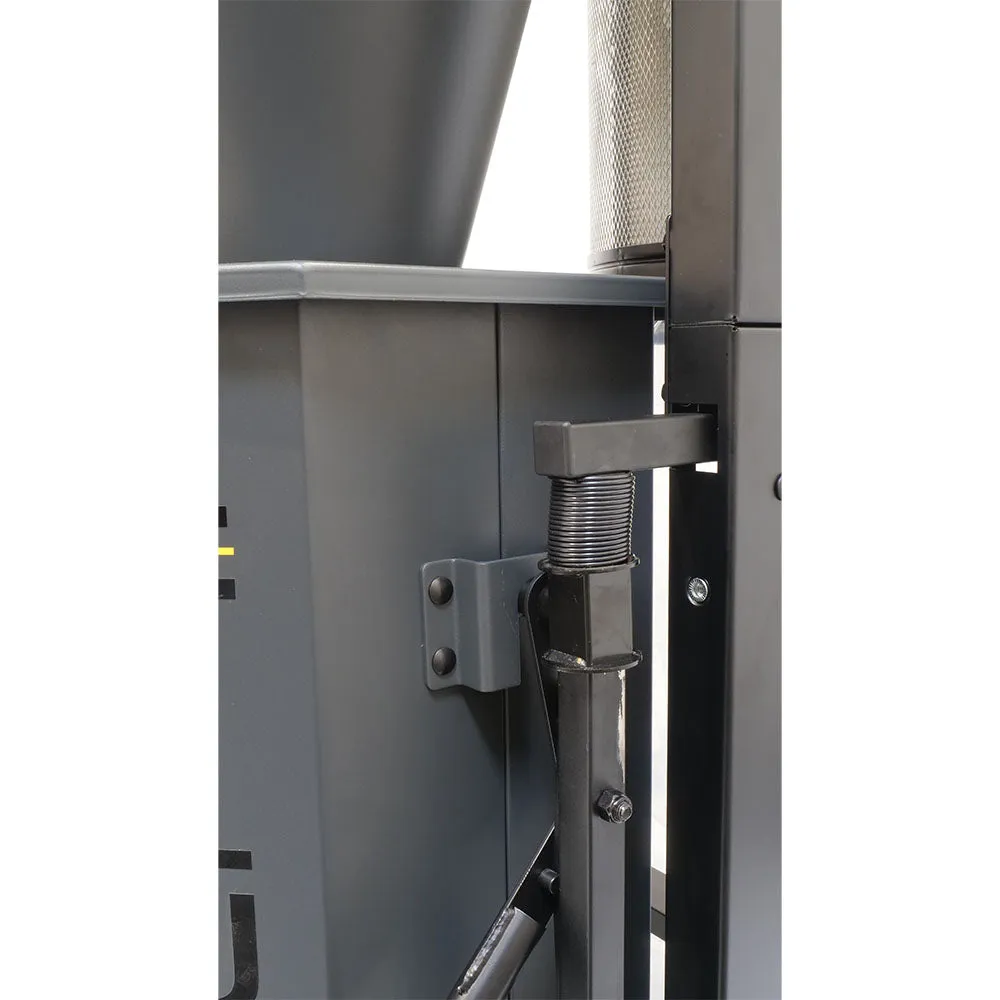

- Lift system eliminates flex hose and the patented lift design creates a strong seal
- High-quality swiveling casters included with 2 locking casters on the main base

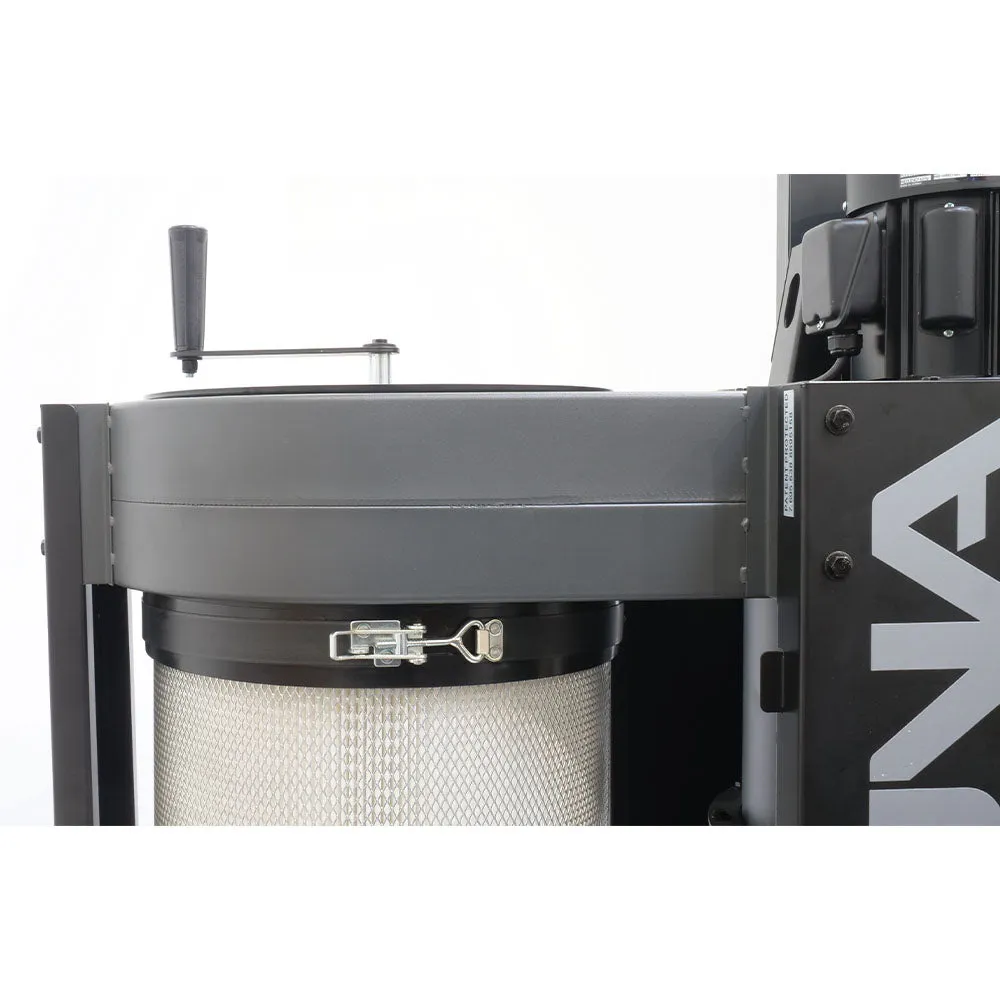

- Dual paddles provides twice the cleaning
- Max level indicator to increase filter longevity
- 3-piece drum construction requires far fewer joints and fasteners cutting assembly time
Specs
Motor specs: 2 HP
Electrical specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (6” inlet) 14A at 220V
Air Volume: 1166CFM (cubic feet per minute)
Max. static pressure: 9.3 Inches of water
Fan size: 14.5”
Inlet: Ø6” (Ø 8” BY Ø 6” PORT) OR (Ø 8” BY Ø 4” X 2 PORTS)

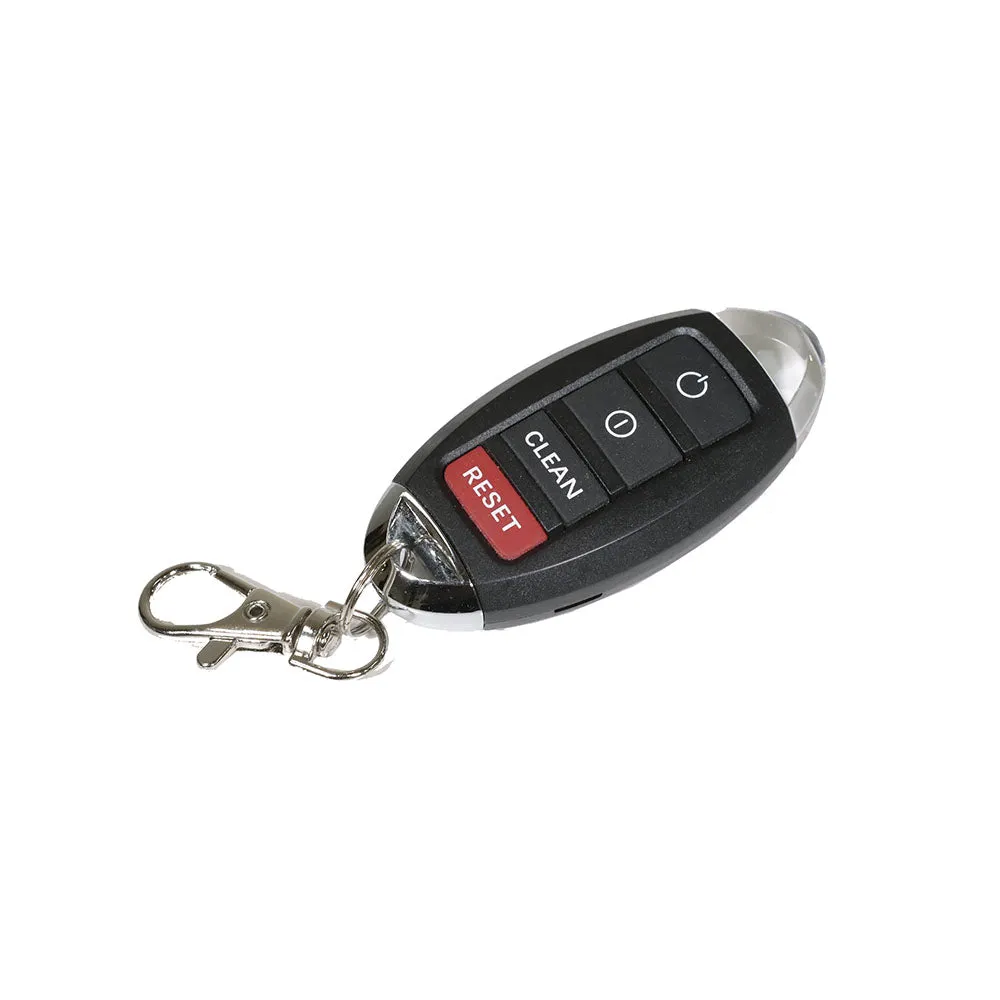

Switch: High-frequency remote control switch
Collection capacity: 46-gallon Octagon drum
Filtering area: 9.5 m2 (102 ft2)
Cartridge filter: 1 Micron Ø15.74” x 35.43” (Ø40 x 90cm) x 1pc
Machine weight: 301 lbs. (140 kgs)
Shipping weight: 377 lbs. (171 kgs)
