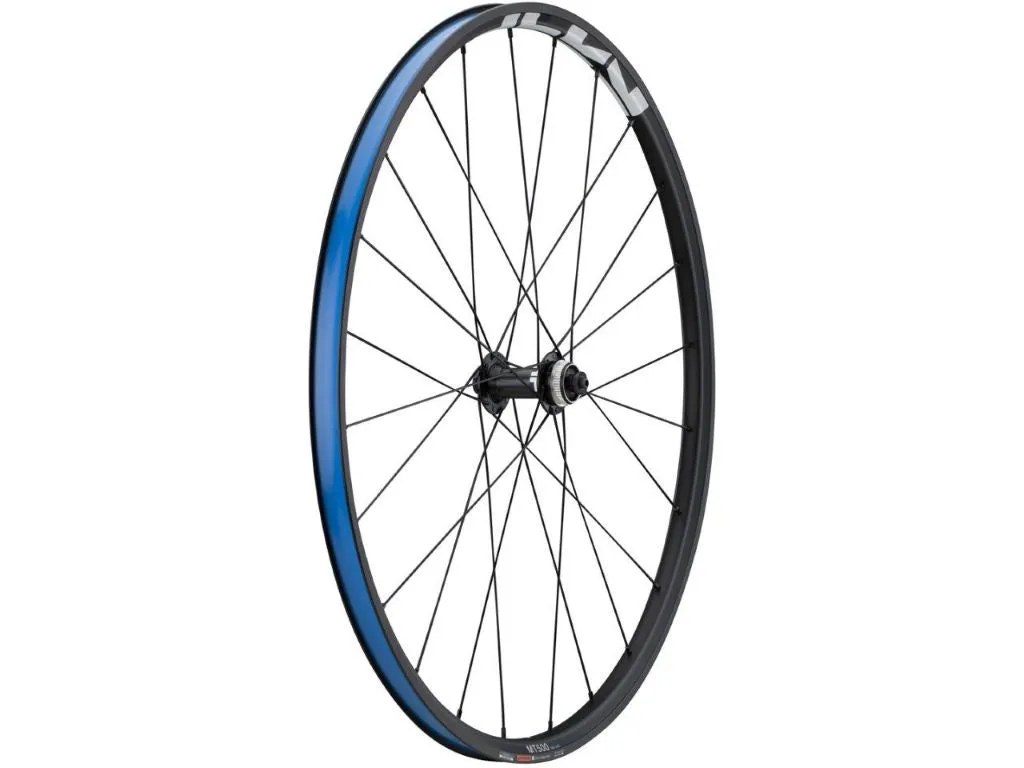

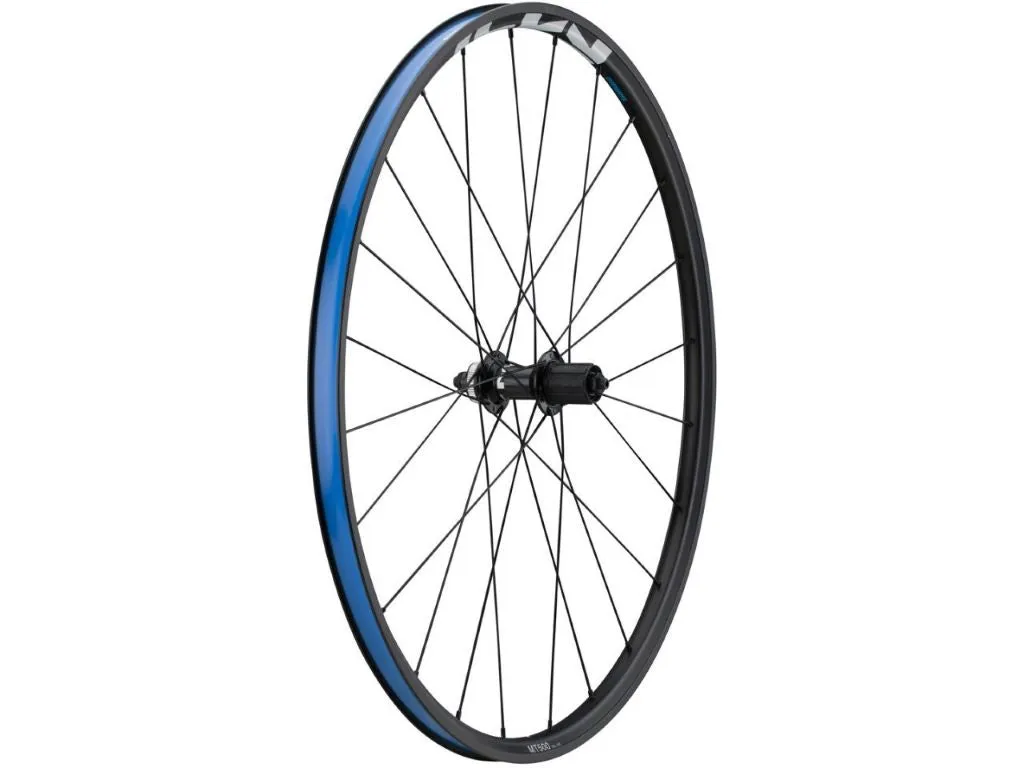

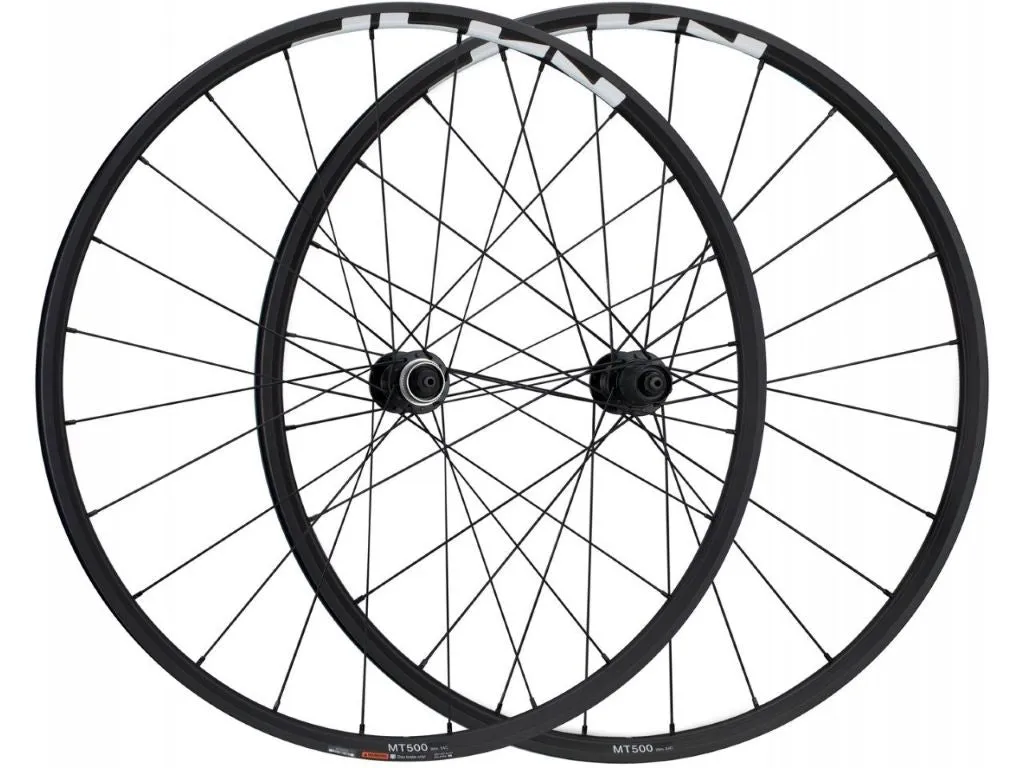

Shimano WH-MT500-CL 29" Wheelset - Aluminium rims and cone bearings
The WH-MT500-CL 29" wheelset by Shimano is a groupless mountain bike wheelset. It has an anodised aluminium rim with 24 mm inner width, painted aluminium hubs, a steel freehub, stainless steel double-butted spokes - 24 each on front and rear - and brass nipples. Sealed and greased cone bearings ensure low-friction running. You can choose between a version with quick releases on the front and rear wheel, a thru-axle version or a mixed version with thru-axle at the front and quick release at the rear. The WH-MT500-CL wheels have to be used with a tube.
Specifications:
- Application: All Mountain
- Wheel Size: 29"
- Tyre Type: clincher
- Number of Spokes: 24
- Brake Type: Center Lock Disc
- Tubeless System: none
Technical Information - Rim:
- Dimensions (ETRTO): 24-622
- Inner Width: 24 mm
- Outer Width: 29.6 mm
- Depth: 21 mm
- Valve Hole Diameter: Presta (6.5 mm)
- Rim Material: aluminium

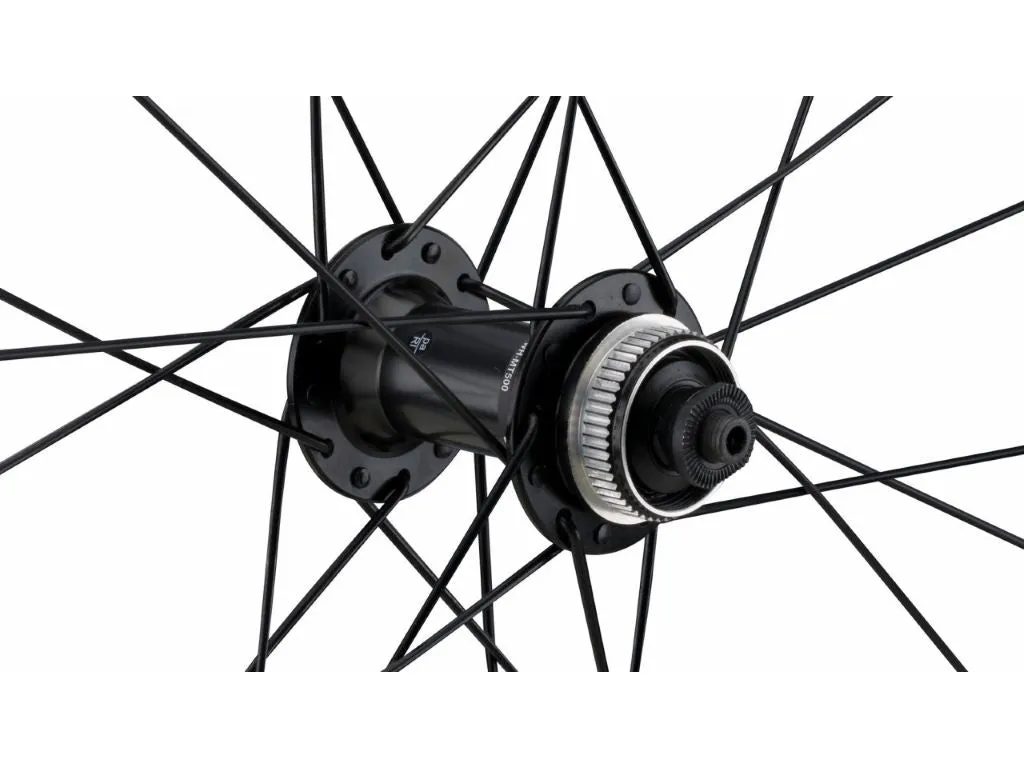

Technical Information - Front Hub:
- Over Locknut Dimension: 9 x 100 mm quick release,
- Bearings: cup & cone
- Body Material: aluminium

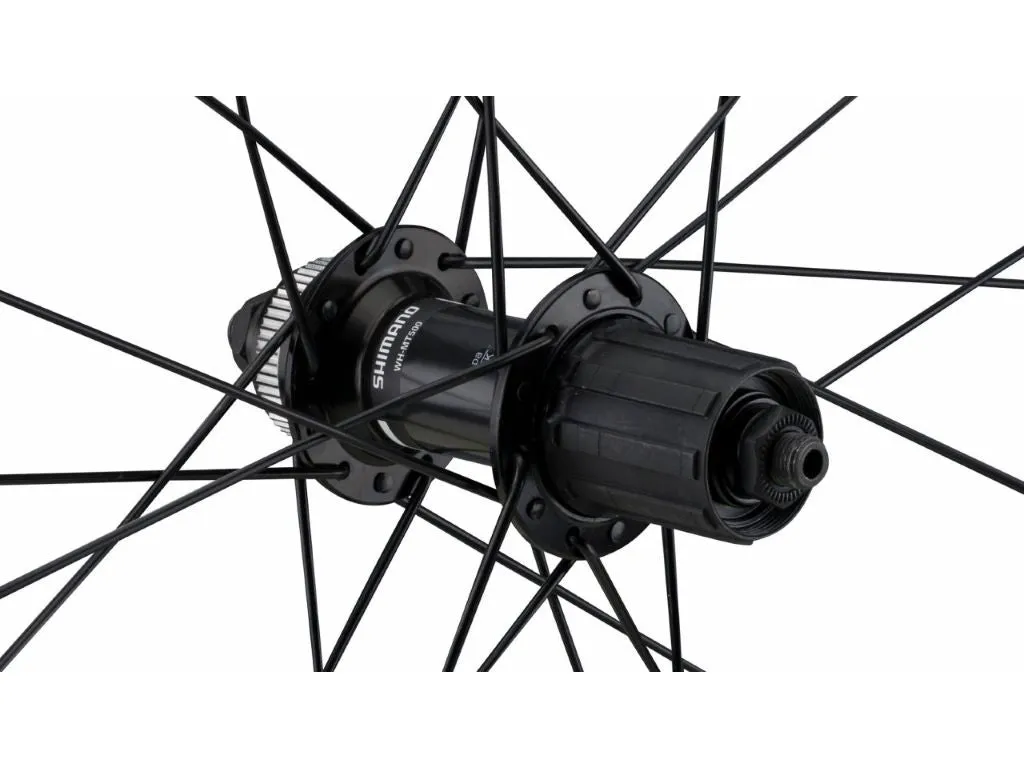

Technical Information - Rear Hub:
- Over Locknut Dimension: 10 x 135 mm quick release
- Bearings: cup & cone
- Body Material: aluminium
- Freehub Body Material: steel
Technical Information - Lacing:
- Front Lacing Pattern: 2-cross
- Rear Lacing Pattern: 2-cross
- Spoke Type: J-Bend / double butted (2.3)
- Spoke Size: 290 mm
- Spoke Material: stainless steel
- Nipple Material: brass
Approved For:
Recommended Tyre Width: 2.0" - 2.35"
Features:
- anodised aluminium rim, sleeved
- painted hubs
- axles made of steel (front/rear for quick release version, rear for thru-axle version) or aluminium (front for thru-axle version)
- labyrinth and contact seals
- internal grease coating

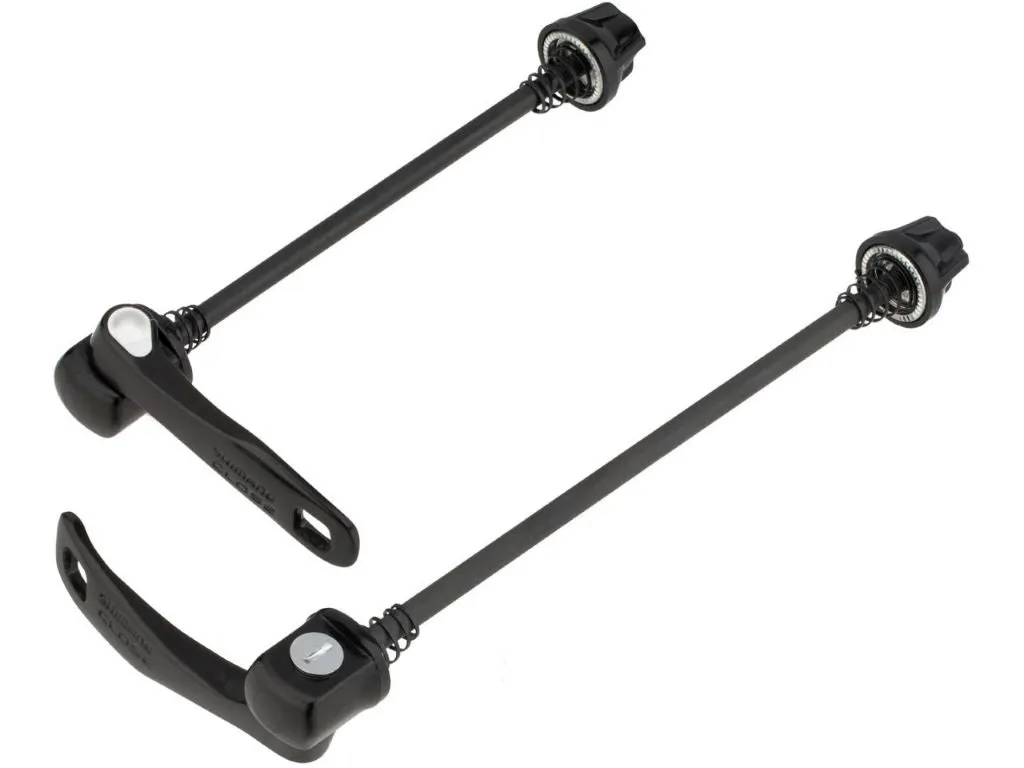

- quick release length (for quick release version) 133 mm (front) and 168 mm (rear), lever made of aluminium
- please use with rim tape (24-622, included)
Models:
- 29" set (front 9x100 rear 10x135) Shimano:
- Freehub: Shimano MTB
- Gearing: 8-/9-/10-/11-speed
